Lascar ElectronicsEL-SIE-1

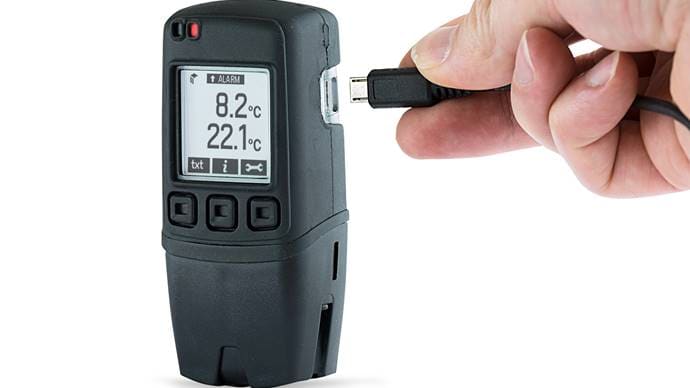

EasyLog EL-GFX-DTC Dual Channel Thermocouple Data Logger
This USB data logger records over 250,000 temperature readings per channel, in one or more sessions, for up to 4 months. It has user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs and is compatible with K, J and T-type thermocouples.
Inside the rugged case, start, stop and restart buttons and a graphic LCD with on-screen menus provide real-time analysis of the data as a summary or as a graph. EL-WIN-USB enables quick configuration and data download via the USB port.
Price on request
No sign-up. You review the list and send it when you are ready.
Torn between two models?
Ask on WhatsAppSaves this product and the next ones you view in this browser, up to eight, for 30 days. You can disable it under “History” in the footer.
History is enabled in this browser. History
Overview
Supplied with

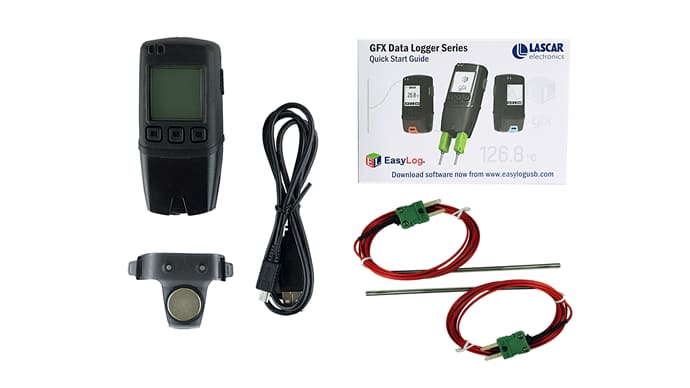

Batteries, two K-type thermocouples and a magnetic wall mount.
Specification
- Measurement range, K type (provided): 0 to +200°C
- Measurement range, K type: -200 to +1,350°C
- Measurement range, J type: -200 to +1,190°C
- Measurement range, T type: -200 to +390°C
- Accuracy (thermocouple error not included): ±1°C
- Operating temperature: -10 to +40°C
- Logging rate: user selectable between 2 seconds and 1 hour
Applications
The EL-GFX-DTC suits a wide variety of applications, including:
- Food temperature monitoring
- Building and site monitoring
Specifications
No published specifications for this product.
Documents
No published documents for this product.
