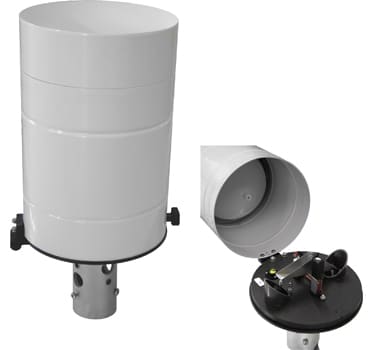

PL400 Rain Gauge with 400cm2 Collecting Surface

Reference: PL400
Brand: NESASRL

Class A sensor according to UNI11452:2012 for precipitation measurement, with a 400cm2 collecting surface, made of aluminum alloy with an anodized finish for protection against salt and oxidizing agents. It complies with the World Meteorological Organization (WMO) standards for environmental monitoring.

The measuring system has a tilting blade support for the stainless steel tipping bucket and a special system to reduce friction, ensuring high accuracy across the whole measuring range. A dedicated test and calibration system keeps the instrument working properly for a long time.

Price on request

No sign-up. You review the list and send it when you are ready.

PL400

Torn between two models?

Overview

Features

Precipitation sensor with tilting blade support for the tipping bucket
Class A accuracy according to UNI11552:2012
Compliant with the World Meteorological Organization (WMO); collecting surface: 400cm2
White-painted aluminum body, rugged and compact; stainless steel tipping bucket
Measuring range: 0÷300mm/h
Sensitivity: 0.2 mm (bucket capacity); 0.1 mm on request
Instrument constant: 0.2 mm per pulse
Average accuracy: ± 2% (± 0.10mm/min); ± 1% on request
Output signal: pulse (tip)
Switch closure time: < 6ms
Operating conditions: 0 ÷ 80°C (-40 ÷ +80°C heated version)
Power supply: 10÷30Vdc (12Vdc, max. 50W, heated version)

Accessories

MCS signal conditioning module

Single-channel module for conditioning digital and analog electrical signals, fully programmable for input/output connection, with a USB interface available as an option. Main features:

Programmable input signals: Pt100, thermopiles, voltages up to 2Vdc, current 0÷20mA or 4÷20mA, frequency up to 1000Hz, pulse counter (1ms min.)
Programmable output signals: voltage 0÷2Vdc; current 0÷20mA or 4÷20mA; RS485 serial (command line); Modbus RS485
Resolution: 18 bits, with more than 262,000 points
Operating conditions: -40 ÷ +80°C
DIN rail mounting
Power supply: 10÷30Vdc (typ. 4mA@12 Vdc)

MCS signal conditioning module

Special cable

NPI shielded cable with an IP68 waterproof connector for the sensor and ferrule terminals for insertion into terminal blocks. Available in any length.

Special cable

SPL1 rain gauge stand

Anodized aluminum rain gauge stand, useful height 1000mm (also available at 2m), for installation on the ground. Diameter 80mm, weight around 6kg. Complete with stainless steel screws and a ground mounting base; the pole has holes for the cables.

SPL1 stand

SPL2 floor rain gauge support

Round plate support for the Nesa rain gauge, allowing the instrument to be fixed directly on the floor or on a flat surface (h = 12cm).

SPL2 support

Standard cable

Shielded multi-core cable for indoor and outdoor use, suitable for hot and cold climates
With an IP68 waterproof connector for the sensor and a PS2 connector for direct connection to the data logger, or with ferrule terminals for insertion into terminal blocks
Standard cable for most sensors in the range
Available in different lengths from 1 m

Standard cable

Windbreaks

Ring with windbreak elements to minimize the effects of wind on rainfall measurements. Made of aluminum, with a light, easy-to-assemble structure: a ring about 100cm in diameter and preformed elements that swing freely in the wind while shielding the mouth of the rain gauge. It mounts directly on the rain gauge base and is height adjustable.

Windbreaks
