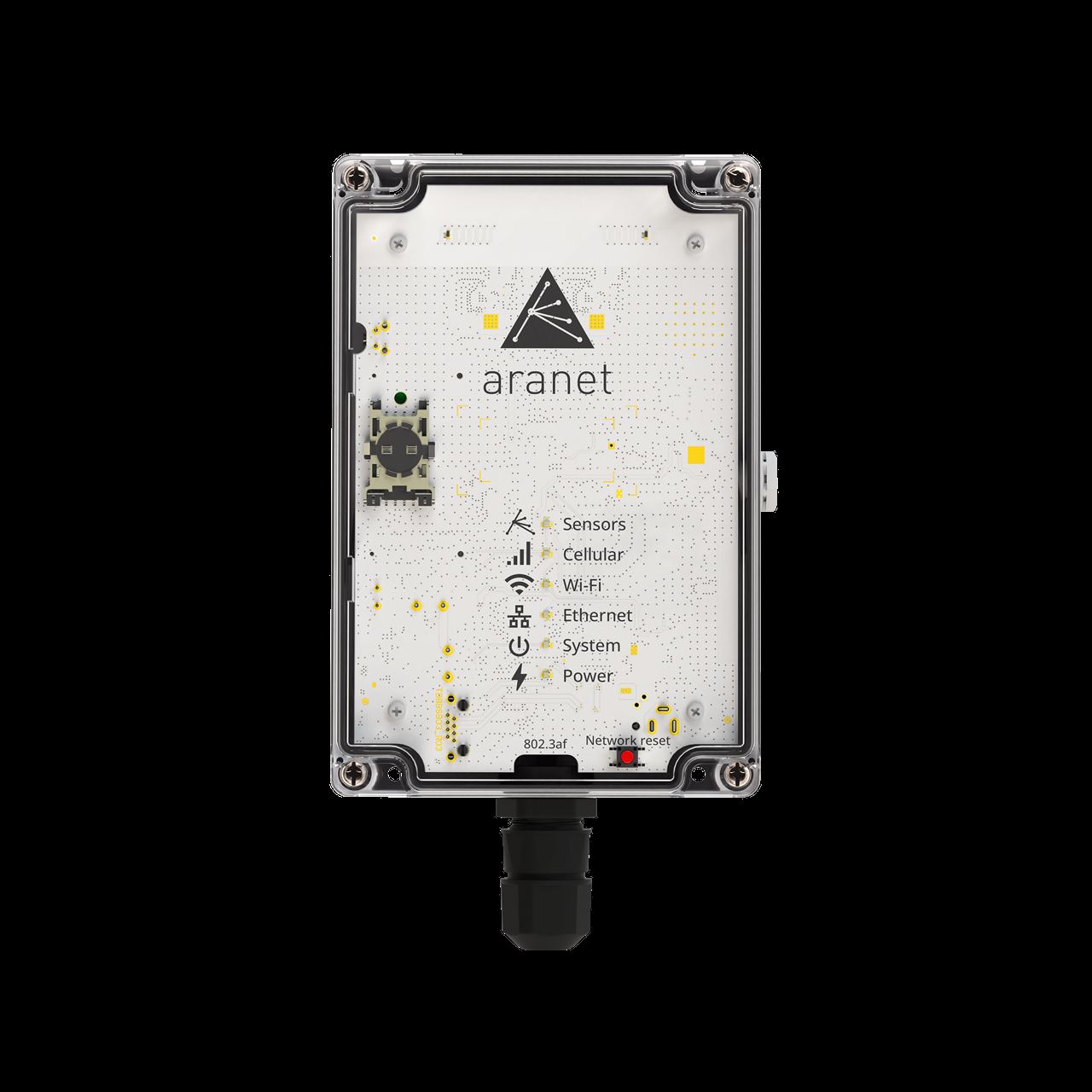

Aranet PRO+ Base Station

Reference: TDSBOBxx
Brand: Aranet

An outdoor environmental monitoring solution that doubles as gateway, data store and web server.

The Aranet PRO+ base station runs on an industrial PoE 802.3af power supply and reaches the internet over Wi-Fi, Ethernet or its built-in 4G cellular modem.

Price on request

No sign-up. You review the list and send it when you are ready.

TDSBOBxx

Torn between two models?

Functions 3 in 1: gateway, data storage and web server
Software SensorHUB included
Receiver sensitivity -127 dBm
Ports Ethernet
Communication Ethernet cable, local Wi-Fi (2.4 GHz), GSM LTE 4G
Power supply PoE 802.3af (industrial power supply)

Overview

3 in 1

Gateway, data storage and web server
SensorHUB software included, with an easy interface to view, analyze and export data
IP67 protection class
Communication over Ethernet cable, local Wi-Fi (2.4 GHz) or GSM LTE 4G

Specifications

Receiver sensitivity: -127 dBm
Ports: Ethernet
Communication: Ethernet cable, local Wi-Fi (2.4 GHz), GSM LTE 4G
Power supply: PoE 802.3af (industrial power supply)
Local data storage: 10 years of measurements from 100 sensors
Data protection: XXTEA, HTTPS, password-protected user accounts
Interface languages: English, French, Spanish, Russian, Latvian
Ingress protection: IP67
Operating temperature: -40 °C to +60 °C
Dimensions: 180 x 120 x 45 mm
Weight: 250 g (8.8 oz)
Housing material: PC plastic

Datasheet

Aranet PRO+ base station datasheet (PDF)

Specifications

Aranet PRO+ Base Station · TDSBOBxx
Property	Value
Functions	3 in 1: gateway, data storage and web server
Software	SensorHUB included
Receiver sensitivity	-127 dBm
Ports	Ethernet
Communication	Ethernet cable, local Wi-Fi (2.4 GHz), GSM LTE 4G
Power supply	PoE 802.3af (industrial power supply)
Local data storage	10 years of measurements from 100 sensors
Data protection	XXTEA, HTTPS, password-protected user accounts
Interface languages	English, French, Spanish, Russian, Latvian
Ingress protection	IP67
Operating temperature	-40 °C to +60 °C
Dimensions	180 x 120 x 45 mm
Weight	250 g (8.8 oz)
Housing material	PC plastic
