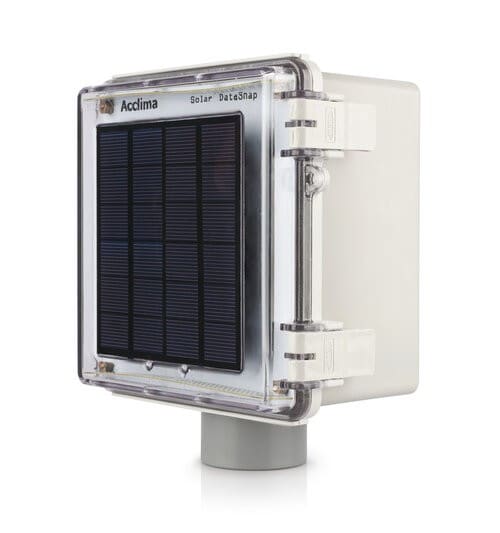

DataSnap Solar SDI-12 Data Logger with Solar Panel

How it works

• Handles up to 10 SDI-12 sensors.
• Plug in the sensor and click the button.
• No SDI-12 programming knowledge is needed.
• Acclima sensors are even easier: one click of the button from your laptop and DataSnap Solar finds every connected Acclima sensor.

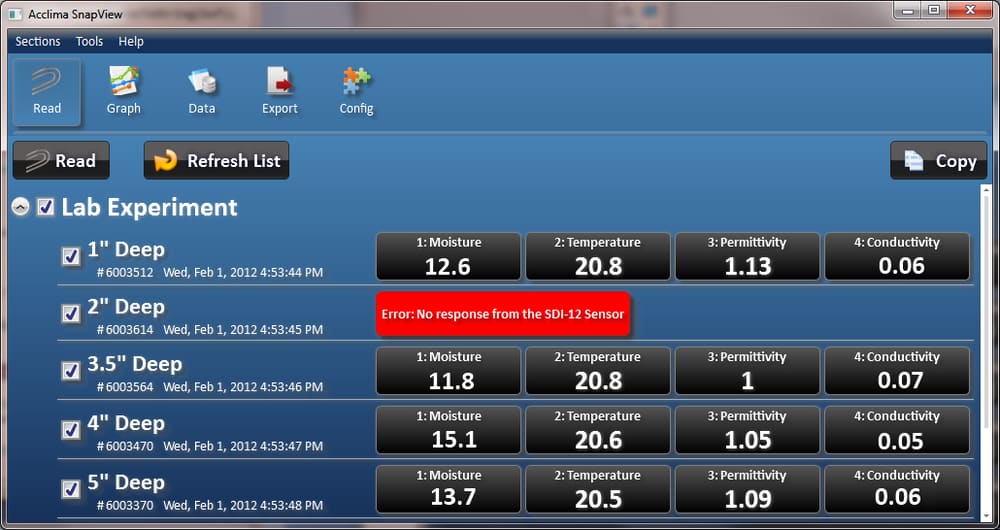

• While it is connected to the laptop, you can take manual readings at any time.

Data recorded with Acclima sensors

Paired with Acclima's patented soil moisture sensors, which the manufacturer calls the most accurate and stable in the industry, the logger captures:

• Soil moisture
• Soil temperature
• Soil conductivity
• Soil permittivity

What's in the box

• DataSnap Solar data logger
• Acclima SnapView software
• 1m USB A/B cable
• 300mm length of PVC pipe for mounting in the ground

Storage capacity

Total memory holds 59,392 sensor scans, and each scan can carry up to 5 data points. How much logging time fits depends on the sensor count and the reading interval:

• 10 Acclima moisture sensors read every 30 minutes: up to 4 months of data.
• 5 sensors: 8 months of storage.

To cover a longer period, connect fewer sensors or read them less often.

Once the memory is full, DataSnap Solar keeps logging by overwriting the oldest readings with new ones. Overwritten data are lost for good, so download them within the time window your setup allows.

Connection and SnapView software

The logger connects over USB to a PC running Acclima's SnapView software, which is used to set up captures, synchronize the unit and analyze all the data:

• Manages several DataSnap Solar units and retrieves real-time sensor data from each of them.

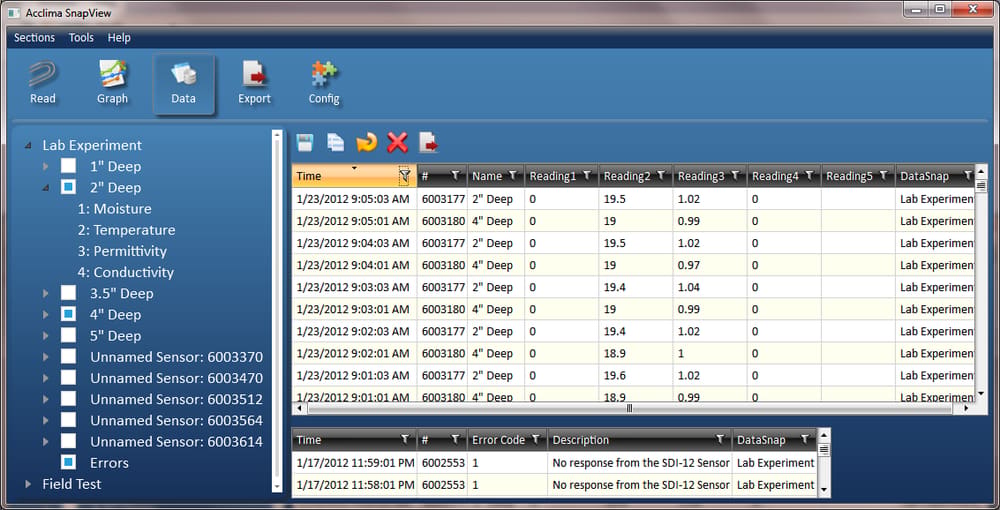

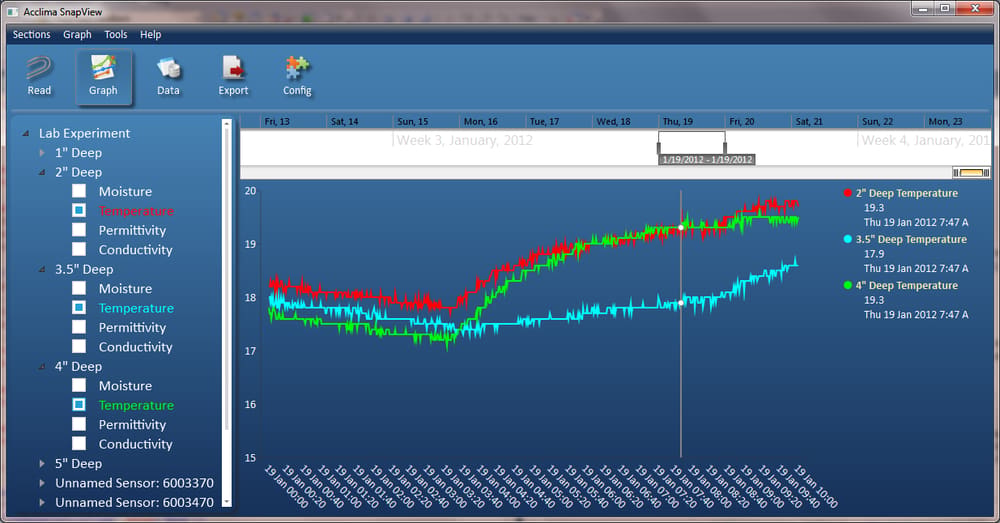

• Displays data as a table or a chart.
• Exports data easily to other analysis applications.
• Runs on any Windows™ PC (XP or later).

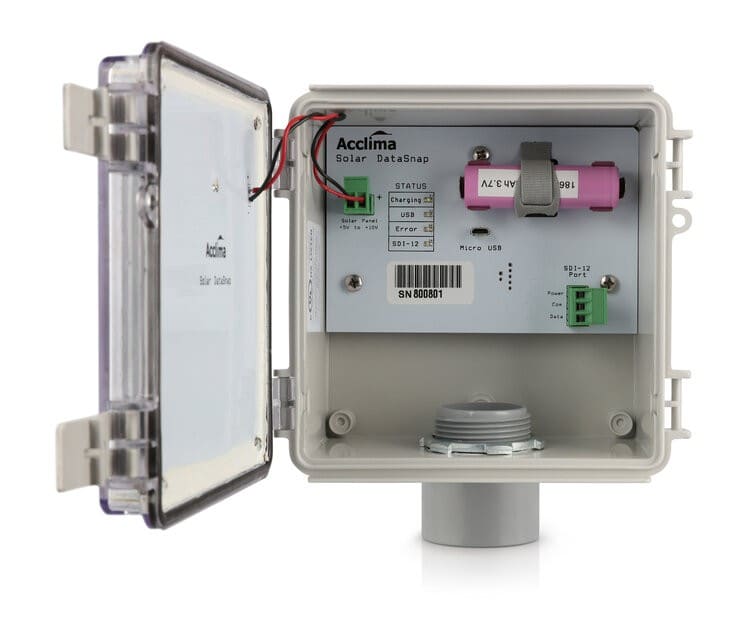

Hardware

• Logs the first 5 data points of the SDI-12 M! command
• USB to SDI-12 bridge
• Can power the sensors from the USB bus (5V only)
• Accepts an optional 12V power adapter
• Short-circuit protection
• Acclima SnapView software supplied
• Works with terminal programs such as HyperTerminal or PuTTy
• Supports third-party software development
