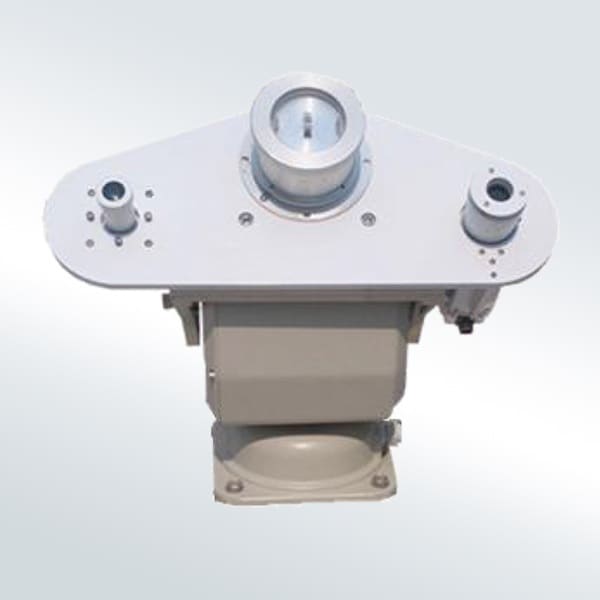

HS14200-08 Automatic Solar Tracking Radiometer

Reference: HS14200-08
Brand: HenSistemas

This automatic solar radiation measurement system accurately observes direct, diffuse and total solar radiation at the same time. It measures direct and diffuse radiation in the 280 to 3000nm spectral range and can also measure sunshine duration directly.

It is widely used in photovoltaic monitoring, meteorological radiation observation, agricultural and forestry research and many other fields.

What it measures

Price on request

No sign-up. You review the list and send it when you are ready.

HS14200-08

Torn between two models?

Ask on WhatsApp

Spectral range — direct radiation 280-3000nm
Spectral range — diffuse radiation 400-1100nm
Spectral range — total solar radiation (optional) 300-3200nm
Measuring range 0-2000W/m2
Output 0-20mV or customized (RS485…)
Sensitivity 7-14μV*W-1*m2

Overview

Features

Compliant with the WMO standard
Simple operation: just switch it on to start measuring
High tracking accuracy
Mounting bracket with good compatibility that accepts similar sensors
Level adjustment
Closed-loop mechanical rotation extends the life of the tracking device
Optional AC or DC power supply

Applications

Solar energy resource assessment
Solar energy and photovoltaic power generation
Agricultural and forestry monitoring
Eco-tourism
Weather stations

Specifications

Radiometers

Spectral range — direct radiation: 280-3000nm
Spectral range — diffuse radiation: 400-1100nm
Spectral range — total solar radiation (optional): 300-3200nm
Measuring range: 0-2000W/m2
Output: 0-20mV or customized (RS485…)
Sensitivity: 7-14μVW-1m2
Internal resistance — direct radiation: Approx. 100Ω
Internal resistance — diffuse radiation: Approx. 350Ω
Internal resistance — total radiation: Approx. 350Ω
Non-linearity (direct, diffuse and total): <±2%
Response time — direct radiation: ≤25s (99%)
Response time — diffuse and total radiation: ≤20s (99%)
Stability — direct radiation: ±1%/year
Stability — diffuse and total radiation: ±2%/year
Temperature effect: ±1% (-10℃-+40℃)
Radiometer operating temperature: -40℃-+70℃, 0-100%RH

Tracking system

Tracking system motor: Stepper motor
Tracking accuracy: <±0.3° (4h)
Torque: 12Mm
Power: 3W
Tracking: Automatic two-dimensional angle tracking
Power supply: DC12V, AC220V or other
Speed: 50°/s
Horizontal angle (azimuth): 0-200°
Vertical angle (declination): -15-+90°
Ingress protection: IP65
Tracker operating temperature: -40℃-+70℃, 0-100%RH
Communication interface: RS232, RS485, USB
Storage conditions: 10℃-60℃@20%-90%RH
Weight (unpacked): 6.5kg (sensors included)

Specifications

HS14200-08 Automatic Solar Tracking Radiometer · HS14200-08
Property	Value
Spectral range — direct radiation	280-3000nm
Spectral range — diffuse radiation	400-1100nm
Spectral range — total solar radiation (optional)	300-3200nm
Measuring range	0-2000W/m2
Output	0-20mV or customized (RS485…)
Sensitivity	7-14μVW-1m2
Internal resistance — direct radiation	Approx. 100Ω
Internal resistance — diffuse radiation	Approx. 350Ω
Internal resistance — total radiation	Approx. 350Ω
Non-linearity (direct, diffuse and total)	<±2%
Response time — direct radiation	≤25s (99%)
Response time — diffuse and total radiation	≤20s (99%)
Stability — direct radiation	±1%/year
Stability — diffuse and total radiation	±2%/year
Temperature effect	±1% (-10℃-+40℃)
Radiometer operating temperature	-40℃-+70℃, 0-100%RH
Tracking system motor	Stepper motor
Tracking accuracy	<±0.3° (4h)
Torque	12Mm
Power	3W
Tracking	Automatic two-dimensional angle tracking
Power supply	DC12V, AC220V or other
Speed	50°/s
Horizontal angle (azimuth)	0-200°
Vertical angle (declination)	-15-+90°
Ingress protection	IP65
Tracker operating temperature	-40℃-+70℃, 0-100%RH
Communication interface	RS232, RS485, USB
Storage conditions	10℃-60℃@20%-90%RH
Weight (unpacked)	6.5kg (sensors included)
