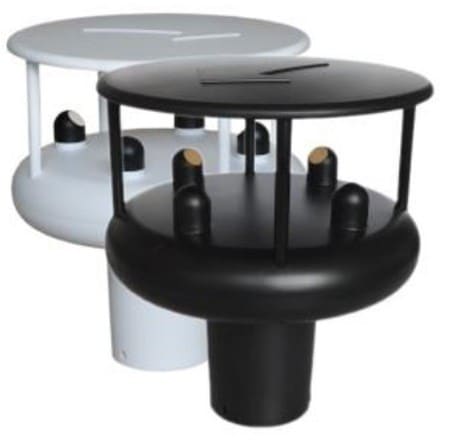

HS-EDS282E 2D Ultrasonic Wind Speed and Direction Anemometer

Reference: HS-EDS282E
Brand: HenSistemas

A compact ultrasonic sensor that measures the two-dimensional horizontal components of wind speed and wind direction at the same time. The HS-EDS282E is made of ABS, which keeps it light and structurally stable, and its own intelligent heating module lets it work normally in cold and freezing conditions.

What it measures

Price on request

No sign-up. You review the list and send it when you are ready.

HS-EDS282E

Torn between two models?

Ask on WhatsApp

Wind speed range 0 - 60m/s
Wind direction range 0 - 359°
Wind direction accuracy ±3°
Wind direction resolution 1°
Wind speed accuracy ±3%
Wind speed resolution 0.01m/s

Overview

Typical applications

Highways
Meteorology
Oil drilling platforms
Waterways
Harbors
Wind power plants
Automatic weather stations

Key features

No moving or wearing parts
Engineering plastic or aluminum alloy shell for a lighter build
Reflecting-type ultrasonic probe in a robust structure
Higher precision thanks to acoustic phase compensation technology
Built-in three-axis electronic compass
3D acceleration module that keeps data stable under vertical and horizontal oscillation

Specifications

Wind speed range: 0 - 60m/s
Wind direction range: 0 - 359°
Wind direction accuracy: ±3°
Wind direction resolution: 1°
Wind speed accuracy: ±3%
Wind speed resolution: 0.01m/s
Analog output: 2 outputs: 4-20mA
Digital output: RS232, RS485, SDI-12
Baud rate: 4800-19200
Protocol: ModBus, NMEA-0183, ASCII
Protection class: IP65
Operating temperature range: -40℃ to +70℃
Storage temperature range: -50℃ to +80℃
Operating humidity: 0 - 100%
Operating voltage: 5-30VDC; consumption 5mA@12V, 0.7mA@12V in eco-power mode
Size/weight: Φ144×162mm, 0.38kg
External construction: ABS

Specifications

HS-EDS282E 2D Ultrasonic Wind Speed and Direction Anemometer · HS-EDS282E
Property	Value
Wind speed range	0 - 60m/s
Wind direction range	0 - 359°
Wind direction accuracy	±3°
Wind direction resolution	1°
Wind speed accuracy	±3%
Wind speed resolution	0.01m/s
Analog output	2 outputs: 4-20mA
Digital output	RS232, RS485, SDI-12
Baud rate	4800-19200
Protocol	ModBus, NMEA-0183, ASCII
Protection class	IP65
Operating temperature range	-40℃ to +70℃
Storage temperature range	-50℃ to +80℃
Operating humidity	0 - 100%
Operating voltage	5-30VDC; consumption 5mA@12V, 0.7mA@12V in eco-power mode
Size/weight	Φ144×162mm, 0.38kg
External construction	ABS
