tempmate.®-S1 V2 Single-Use Temperature Logger, EN12830 Compliant

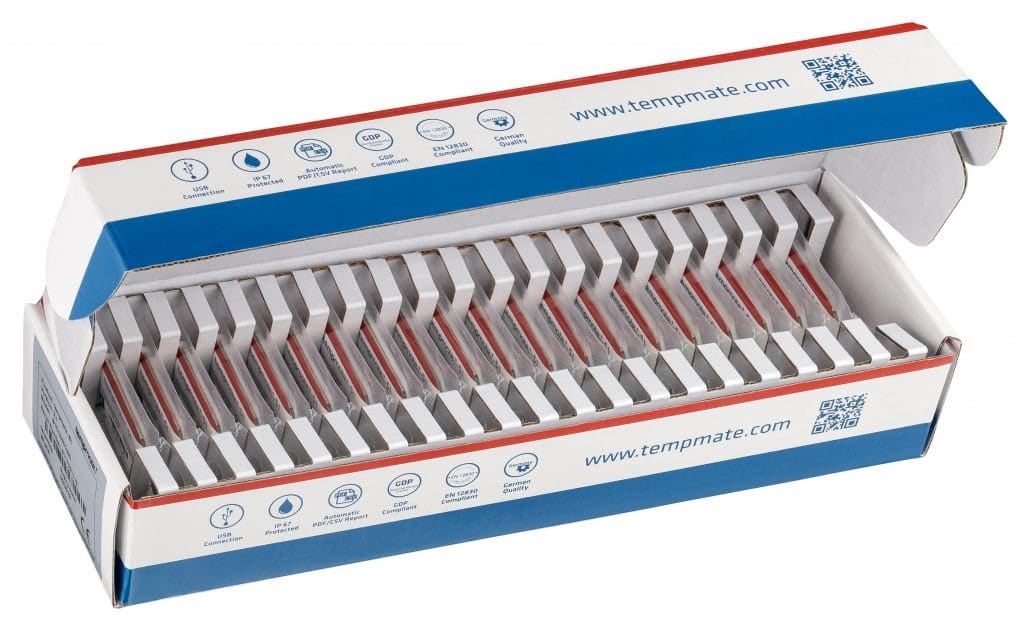

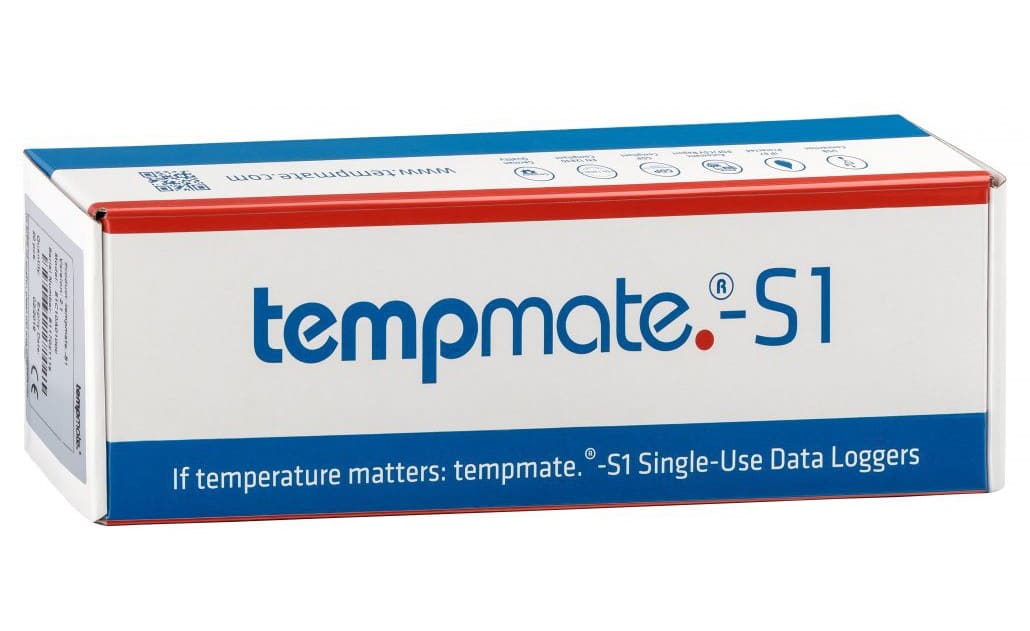

Sold in packs of 20 units. An economical, single-use, GDP-conform temperature logger that produces PDF and CSV reports automatically for smart logistics.
The tempmate.®-S1 range was developed for monitoring temperature-sensitive goods across the entire cold chain. Customer-specific settings are loaded ex-works, so every logger is ready to use straight out of the box. High-accuracy digital sensors, long battery life and an intuitive LED status display have made the tempmate.®-S1 a worldwide standard in logistics and storage.
Price on request
No sign-up. You review the list and send it when you are ready.
Torn between two models?
Ask on WhatsApp- Data Logger Type Single-use temperature logger
- Dimensions 88/47/7 mm (l/w/h)
- Weight 14.6 g
- Protection Class IPE67/NEMA 6
- Certifications CE, EN12830, GDP, RoHS
- Data Transfer USB
Saves this product and the next ones you view in this browser, up to eight, for 30 days. You can disable it under “History” in the footer.
History is enabled in this browser. History
Overview
Made for air cargo
The tempmate.®-S1 needs no labeling under IATA dangerous goods regulations. Activate it, drop it into the box and read its status from the LEDs while the shipment is handled or once it reaches its final destination. The report it generates on its own shows exactly whether, and when, your threshold was crossed.
- Comes preconfigured
- 6-point validation certificate
- Backup logging
- Anti-stop function
- Records for up to 180 days
- Service life of up to 2 years
- No extra software needed

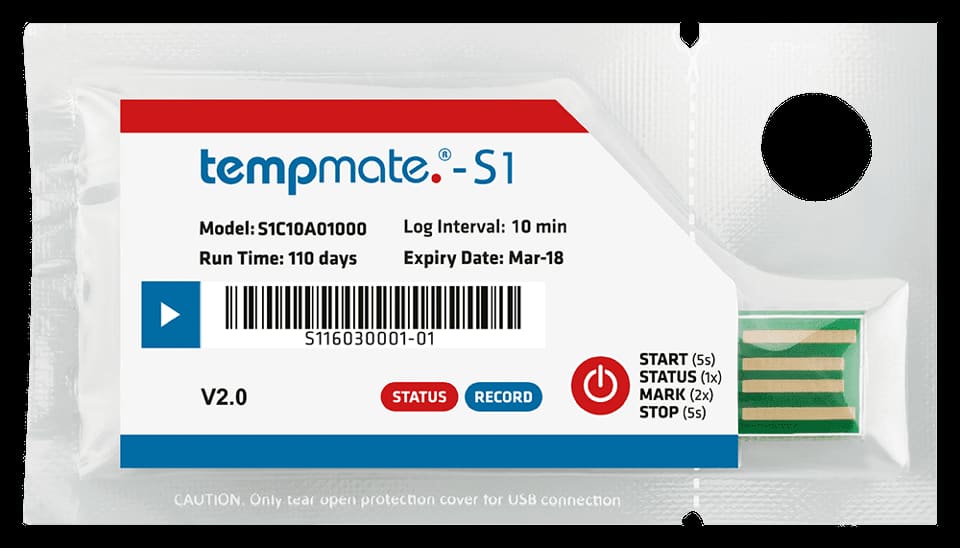

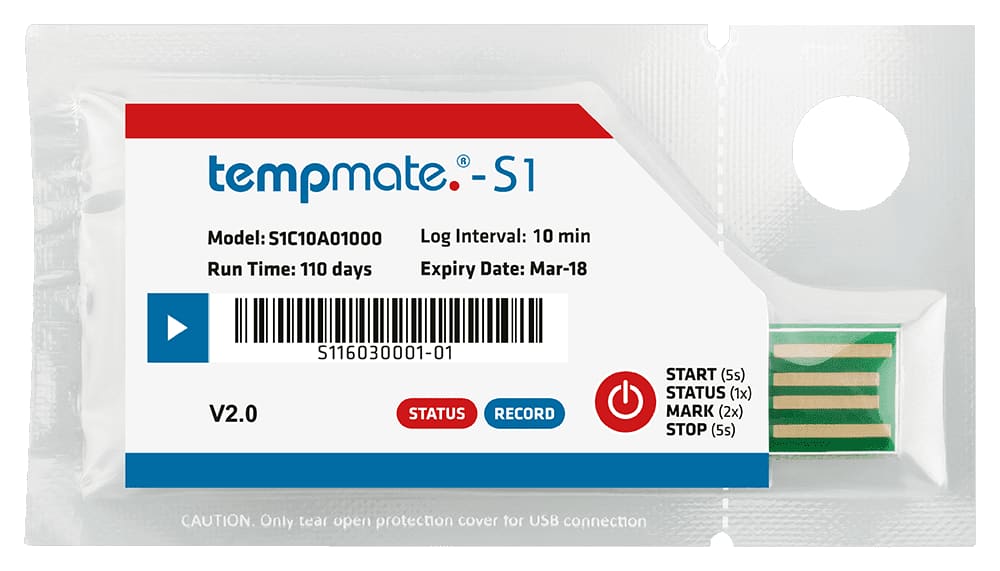

- LED status indicators
tempmate.®-S1 V2 technical data
- Logger type: single-use temperature logger
- Size (l/w/h): 88/47/7 mm
- Mass: 14.6 g
- Enclosure rating: IPE67/NEMA 6
- Approvals: CE, EN12830, GDP, RoHS
- Data download: USB
- Measuring range: -30°C to +70°C (-22°F to 158°F)
- Accuracy: ±0.5°C/0.9°F (-20°C/+40°C), ±1.0 elsewhere
- Resolution: 0.2°C
- Logging interval: 10 minutes as standard
- Logging duration: 110 days as standard
- Memory: up to 16,000 records
- Alarms: up to 5 programmable thresholds
- Shelf life / battery: 2 years stored at -25°C to +35°C / 2x CR17450
Specifications
| Property | Value |
|---|---|
| Data Logger Type | Single-use temperature logger |
| Dimensions | 88/47/7 mm (l/w/h) |
| Weight | 14.6 g |
| Protection Class | IPE67/NEMA 6 |
| Certifications | CE, EN12830, GDP, RoHS |
| Data Transfer | USB |
| Temperature Range | -30°C to +70°C (-22°F to 158°F) |
| Temperature Accuracy | ±0.5°C/0.9°F (-20°C/+40°C), others ±1.0 |
| Temperature Resolution | 0.2°C |
| Recording Interval | 10 minutes standard |
| Recording Duration | 110 days standard |
| Data Storage Capacity | Max. 16,000 records |
| Alarm Configuration | Up to 5 programmable thresholds |
| Shelf Life / Battery | 2 years at -25°C to +35°C / 2x CR17450 |
