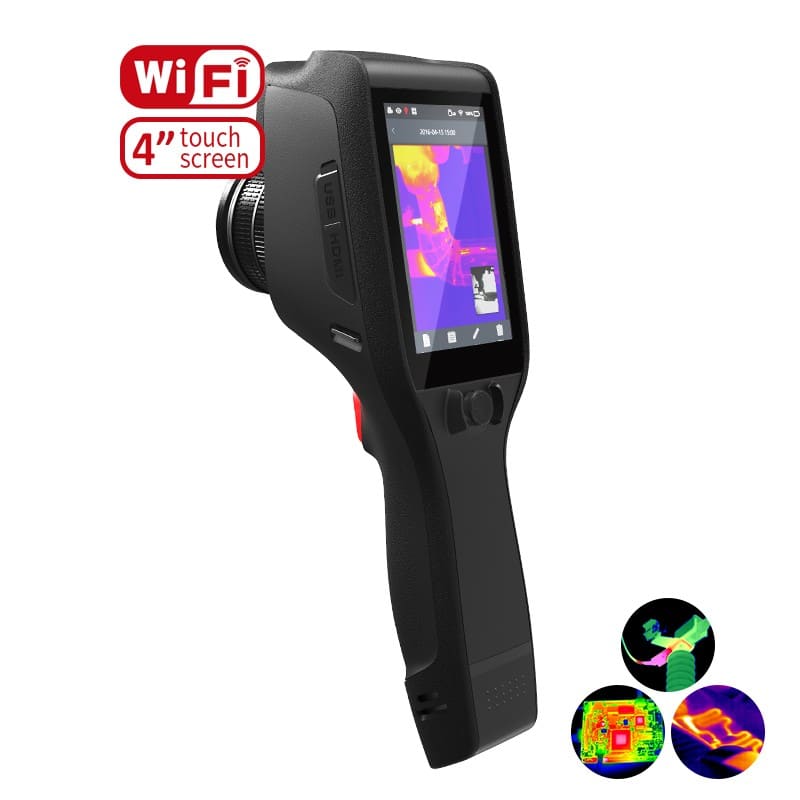

D Series Intelligent Thermographic IR Camera

Design and handling

• Ergonomic shape that stays comfortable to hold for long periods
• Refined look and strong structure, with a 2m drop test certificate
• Light, at about 800g

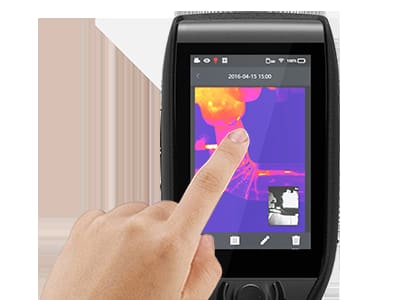

4" high-brightness touch screen

• 800×480 resolution
• Adjustable brightness that stays readable in sunlight
• Step-by-step professional guidance keeps operation simple

Android and Wi-Fi

• Images and videos can go to Wi-Fi mobile devices for deeper analysis
• The report produced on the camera can be printed at once on a Wi-Fi printer

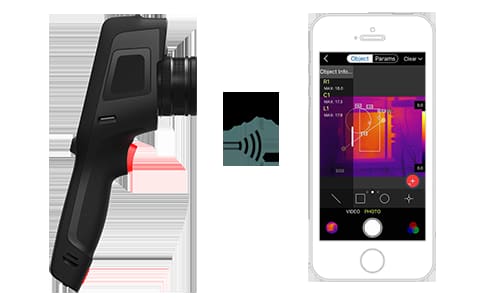

• Paired with a phone, it takes IR photos and supports multi-screen control

Ready for different jobs

• Three types, with 192×144 and 384×288 IR FPA detectors and automatic and electric focusing
• Four image presentations: IR, visible, PIP and MIF
• Buckle-type lenses (tele, wide and high-temperature filter lens) swap directly to suit the job
• Large-capacity battery: four hours of operation with two batteries

Accessories

• Standard: thermal imager, lithium battery, adapter, USB cable, wristband, HDMI cable, CTP gloves, quick guide, specification, compact disc, accessory list and TF card (16GB)
• Optional: lithium battery, carrying pack and charging dock

IrAnalyzer on the PC

Capturing images with an infrared camera is only where an infrared inspection begins. The manufacturer's Guide IrAnalyzer software supports the whole process through to a finished professional report:

• Multiple image and video resources
• Image processing
• Video analysis
• Preference settings
• Reports in PDF or WORD format

Mobile app

Import images or videos to a mobile device, process and analyze them there for an instant report, or share results with colleagues and decision makers. With the app installed you can also work hands-free during the inspection. It handles every basic camera operation, such as focus, shutter, electronic zoom, palette change and image mode change.

• Wireless live video
• Remote control of the camera
• Powerful analysis and reporting
• Inspection results shared immediately

Specifications by model

Models: 28D192F, 28D384F, 28D192M, 28D384M and 28D384A.

Imaging performance

• IR resolution: 192×144 (28D192F, 28D192M); 384×288 (28D384F, 28D384M, 28D384A)
• NETD: 50mk (28D192F, 28D192M); 45mk (28D384F, 28D384M); 40mk (28D384A)
• Field of view: 37.8°×28.8° (28D192F, 28D192M); 28.4°×21.5° (28D384F, 28D384M); 35°×27° (28D384A)
• Closest focus: 1m (28D192F, 28D384F); 0.5m (28D192M, 28D384M); 0.4m (28D384A)
• Focal length and aperture: 7mm/F1.1 (28D192F, 28D192M); 19mm/F1.0 (28D384F, 28D384M); 15mm/F1.1 (28D384A)
• IFOV: 3.45mrad (28D192F, 28D192M); 1.29mrad (28D384F, 28D384M); 1.60mrad (28D384A)
• Lens identification (F / M / A models): N/A / automatic or manual / N/A
• Focusing (F / M / A models): fixed / manual / electric or automatic
• Frame rate: 60Hz/50Hz (30Hz/25Hz)
• Digital zoom range: 1.1~4

Detector

• VOx/ 8~14μm
• 25μm pixels

Optional lenses

• Wide angle: 57°×45°/8.8mm/F1.0/0.3m/2.65mrad (28D384M)
• Tele: 14.4°×10.8°/19mm/F1.0/1m/0.65mrad (28D192M); 13.7°×10.3°/40mm/F1.2/1m/0.62mrad (28D384M)
• High temperature: yes, 650℃~1500℃ (28D192M, 28D384M)

Image presentation

• 4" high-brightness LED touch screen, 480×800, 24 bits
• Modes: IR image/ visual image, MIF/ PIP

Measurement

• Temperature range (F / M / A models): -20℃~350℃ / -20℃~150℃, 100℃~650℃, 650℃~1500℃ (high-temperature lens optional) / -20℃~150℃, 100℃~650℃
• Accuracy: ±2℃ or ±2% of reading, at 15°C to 35°C ambient and with objects above 0°C
• Tools: spotmeter: 5; line: 2; area: 5
• Automatic tracking: 1. hottest/coldest spot on the whole screen; 2. hottest/coldest spot of the analysis object
• Alarms: high and low temperature
• 8 color palettes: White Hot, Fulgurite, Iron Red, Hot Iron, Medical, Arctic, Rainbow 1, Rainbow 2

Storage

• Images: in the camera and on the TF card, JPG with temperature data
• Video without temperature data: H.264 at 25Hz, audio included
• Video with temperature data: .irgd at 25Hz, no audio
• Video streaming: yes, to a PC or mobile over USB or Wi-Fi

Visual camera

• 5MP/ 640×480, alternative; fixed; FOV 25°×19°

Interfaces

• Data: MICRO USB 2.0, MICRO HDMI, power (12V), TF card (16G standard, up to 32G); WiFi/Laser
• Bluetooth: N/A or yes, depending on the model

Power

• Rechargeable Li-ion battery (7.4V), ≥4h; 4h in the camera, 5h in the dual-bay charger; automatic shut-down and sleep mode

Environment and build

• Temperature: -10℃~50℃ in operation; -40℃~70℃ in storage
• Enclosure rating: IP54
• Shock: 30g 11ms (IEC 60068-2-27)
• Vibration: 10HZ150HZ10HZ 0.15mm (IEC 60068-2-6)
• Certifications: CE, FCC, ROHS
• Weight: 735g (28D192F, 28D384F, 28D384A); 840g (28D192M, 28D384M)
• Dimensions (mm): 274×97×78 (28D192F, 28D384F); 274×106×78 (28D192M); 274×110×78 (28D384M); 274×91×78 (28D384A)
